PG Admin

Table of contents

1. Overview
2. Accessing PG Admin
3. Pre-configured Server Connection
4. Browsing Tables
5. Running SQL Queries
6. Predefined Queries
   1. Accessing the Query Files
   2. Available Queries
   3. Database Schema Notes
7. Exporting Data to CSV
8. Backup and Restore
   1. Creating a Backup
   2. Restoring a Backup
9. PG Admin Access Levels
10. Troubleshooting

Overview

PG Admin is the web-based PostgreSQL administration interface integrated with EORSA-DB. It provides direct access to the underlying PostgreSQL database and is intended for database administrators who need to inspect data, run SQL queries, perform imports/exports, or troubleshoot database issues.

Access to PG Admin is restricted to users with the ImportExportDatabase permission, which is granted to the Administrator and EditorUser roles.

PG Admin is an external tool — it opens in a new browser tab outside the main EORSA-DB application. Authentication is handled automatically through Keycloak using the same account you are logged in with.

---

Accessing PG Admin

1. Log in to EORSA-DB with an account that has the Administrator or EditorUser role.

2. Click PG Admin in the top navigation bar. The link is only visible to users with the ImportExportDatabase permission.

3. A new browser tab opens and you are automatically authenticated via Keycloak (OAuth2/OIDC).
   If your session has expired you may be redirected to the Keycloak login page first.

---

Pre-configured Server Connection

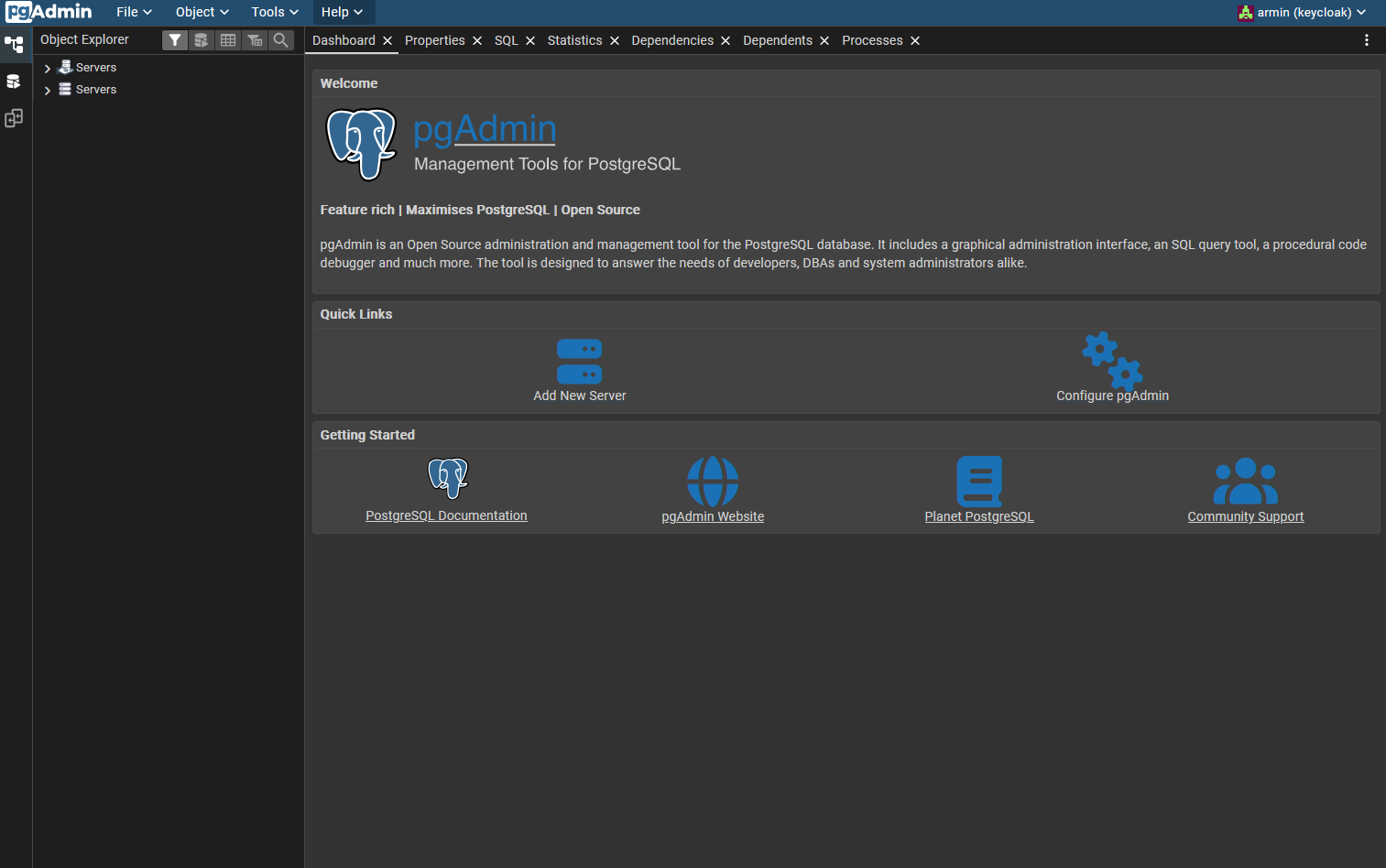

When you first open PG Admin you will see a pre-configured server called EORSA-DB (Read Only) in the left-hand Object Explorer panel. This server connects to:

Setting	Value
Host	eorsadb-db (internal hostname)
Port	5432
Database	eorsadb
Username	pgadmin_readonly (shared read-only account)

The pre-configured connection uses a read-only PostgreSQL account. You can browse tables and execute SELECT queries, but INSERT, UPDATE, DELETE and DDL statements will be refused unless you connect with a more privileged account.

---

Browsing Tables

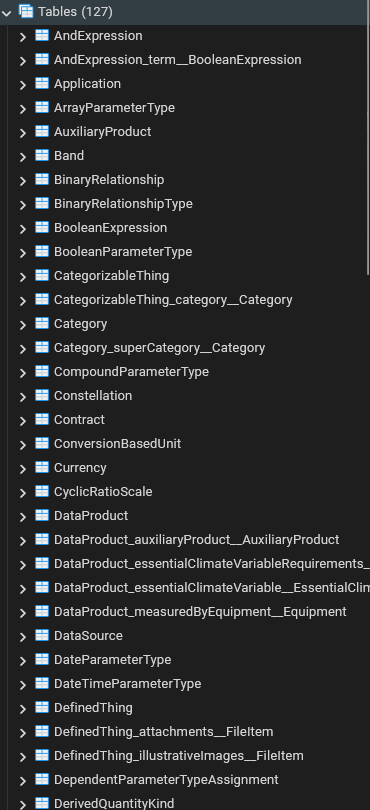

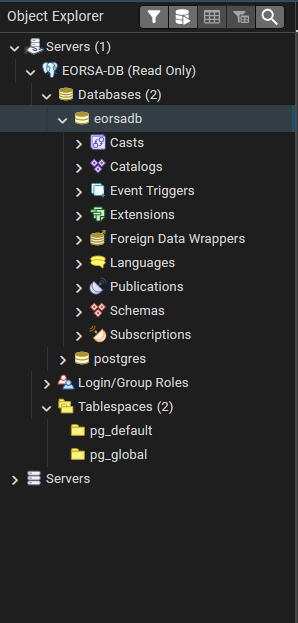

1. In the Object Explorer (left panel), expand EORSA-DB (Read Only) → Databases → eorsadb → Schemas → public → Tables.

2. Right-click a table and select View/Edit Data → All Rows to see the full contents of the table.

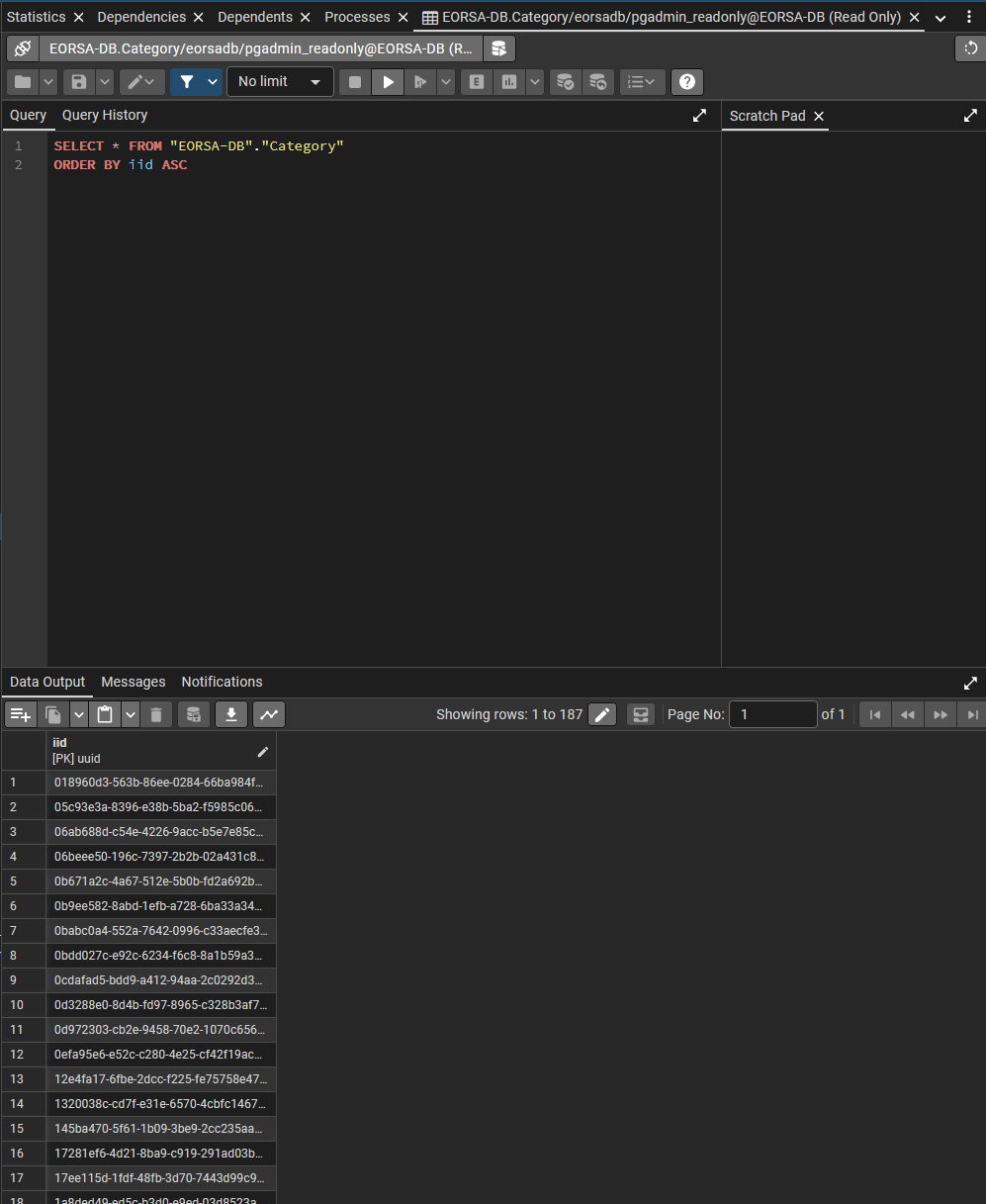

1. The data grid opens in the main panel. You can:
   • Scroll through rows.
   • Click column headers to sort.
   • Use the filter toolbar to search for specific values.

---

Running SQL Queries

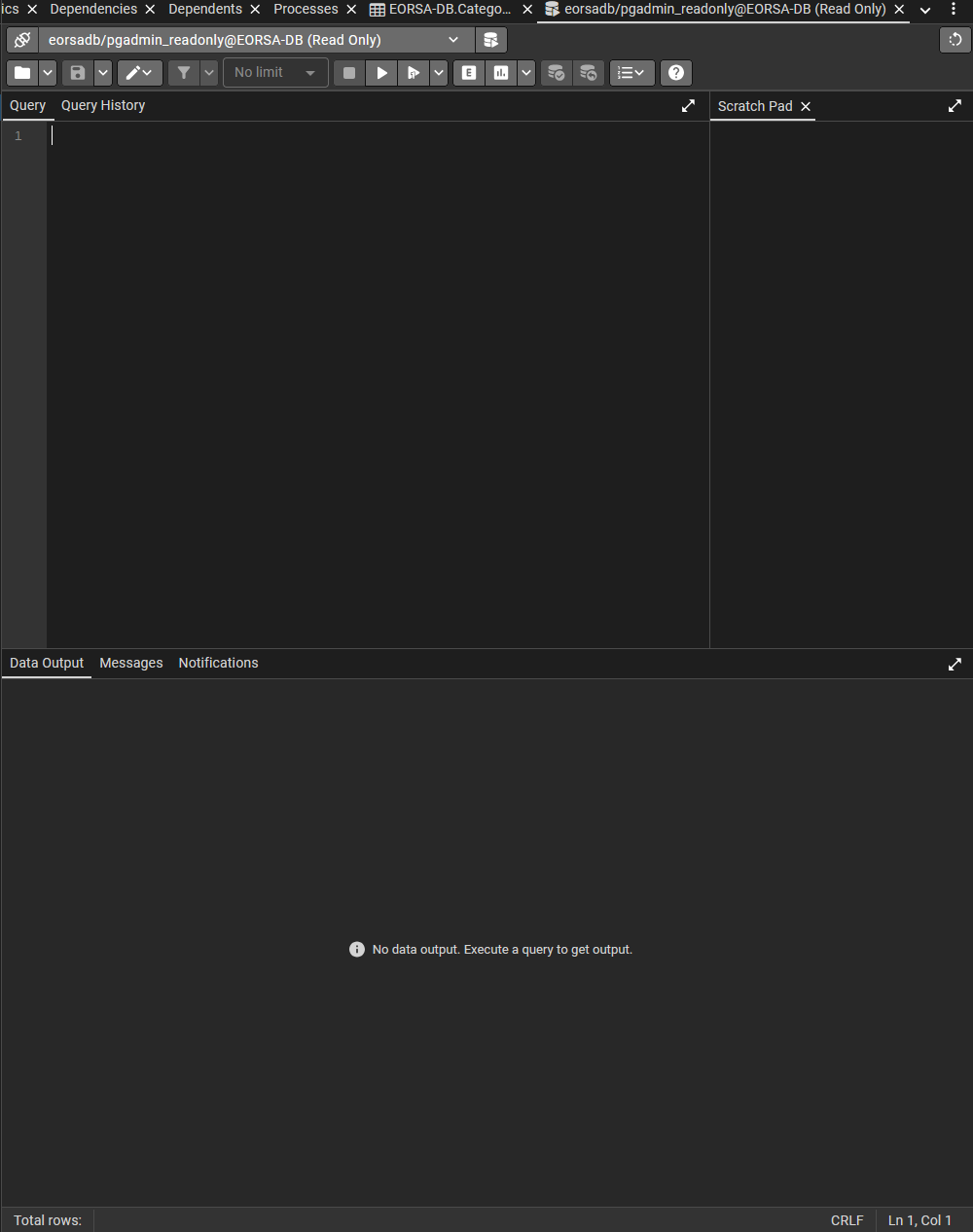

1. In the Object Explorer, right-click the eorsadb database and select Query Tool.

1. Type your SQL query in the editor pane. Example:

   SELECT t.iid, t.data->>'name' AS name, t.data->>'shortName' AS short_name
   FROM "EORSA-DB"."Thing" t
   WHERE t."classKind" = 'Mission'
   ORDER BY t.data->>'name'
   LIMIT 50;


2. Press F5 or click the Execute / Refresh button (▶) to run the query.

3. Results appear in the Data Output tab at the bottom.

With the read-only connection, only SELECT statements (and read-only functions) will succeed. Use a privileged database account if you need to write data.

---

Predefined Queries

The PG Admin image ships with a set of ready-to-use SQL query files. They are available in the Shared Queries storage folder and cover the most common data-access tasks.

Accessing the Query Files

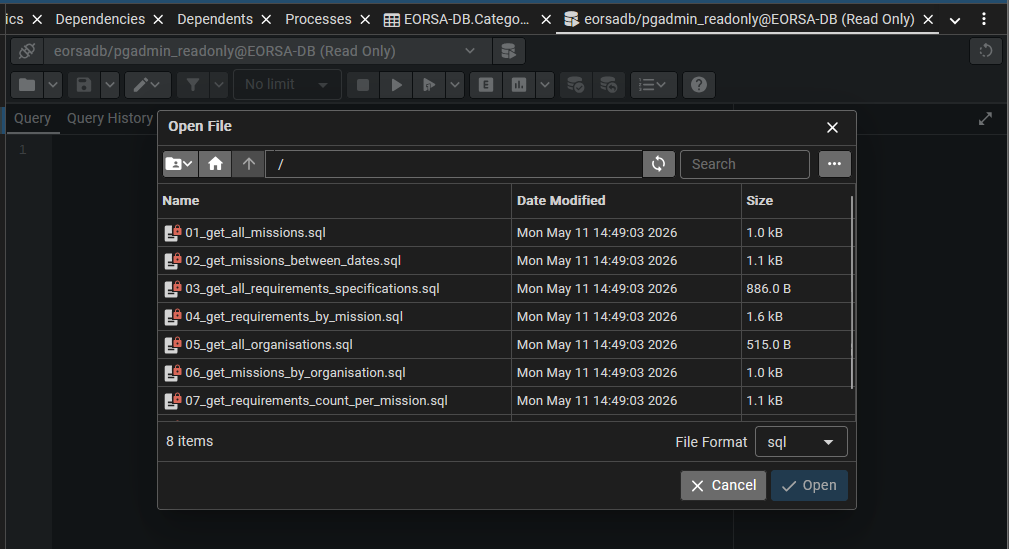

1. In the Query Tool toolbar, click the Open File button (folder icon) or press Ctrl+O.
2. In the file browser that opens, navigate to Shared Queries → queries.
3. Select the .sql file you want to run and click Open.
4. The query loads into the editor. Adjust any placeholder values where indicated (marked with 'YOUR_...'), then press F5 to execute.

Available Queries

File	Description
01_get_all_missions.sql	All missions with name, short name, description, start/end dates, and parent space program.
02_get_missions_between_dates.sql	Missions whose operational window overlaps a date range. Edit the two date literals in the WHERE clause.
03_get_all_requirements_specifications.sql	All requirements specifications and their linked mission.
04_get_requirements_by_mission.sql	All requirements under every specification linked to a given mission. Replace 'YOUR_MISSION_SHORT_NAME'.
05_get_all_organisations.sql	All organisations stored in the database.
06_get_missions_by_organisation.sql	Missions associated with a specific organisation. Replace 'ESA' with the target short name.
07_get_requirements_count_per_mission.sql	Requirement count per mission, broken down by specification.
08_get_data_products_by_mission.sql	Data products for a given mission. Replace 'ALOS-2' with the target short name.

Database Schema Notes

The EORSA-DB PostgreSQL database stores all domain objects in a single table called "Thing" inside the "EORSA-DB" schema. Each row has:

Column	Type	Description
iid	uuid	Unique identifier
classKind	varchar	Object type (e.g. Mission, Requirement, Organisation)
data	jsonb	All other attributes as JSON

Key data fields you will encounter:

Field	Example value	Notes
name	"Sentinel-1A"	Full display name
shortName	"S1A"	Abbreviated name — used in filter queries
definition	"SAR mission …"	Free-text description
startDate	"2014-04-03T…"	ISO 8601 timestamp
endDate	"2024-12-31T…"	ISO 8601 timestamp
dataType	"NonCore"	Data classification
isFailed	false	Mission failure flag

Use the ->> operator to extract a field as text, e.g. t.data->>'name', or cast it explicitly:

-- Filter missions that started after 2010
WHERE (t.data->>'startDate')::timestamptz > '2010-01-01'

---

Exporting Data to CSV

1. Open the Query Tool and run the desired SELECT query.

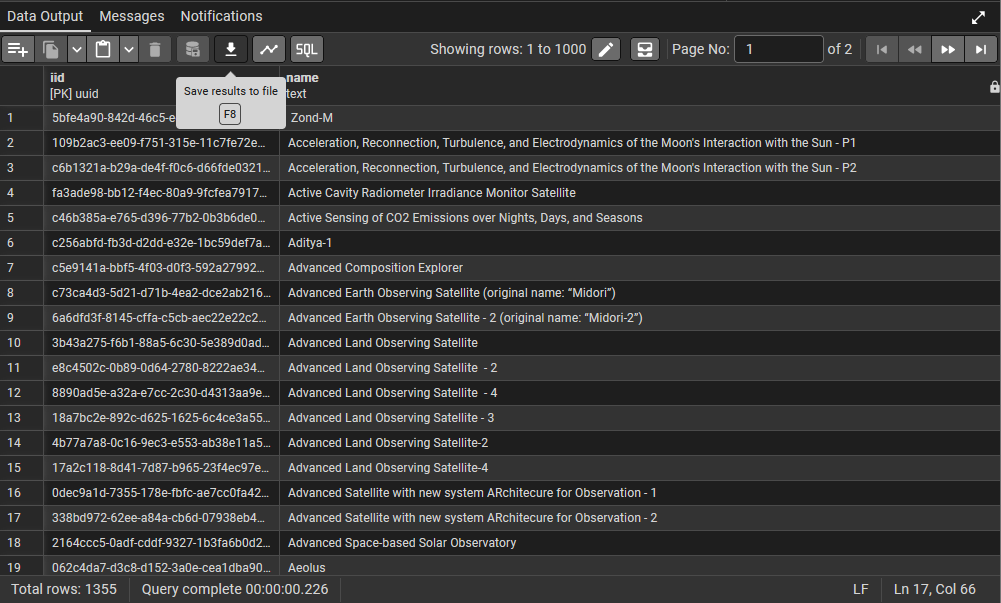

2. Once the results are displayed, click the Download as CSV button (cloud/arrow icon) in the results toolbar.

3. Save the file to your local machine.

---

Backup and Restore

PG Admin provides a graphical interface to the pg_dump / pg_restore utilities.

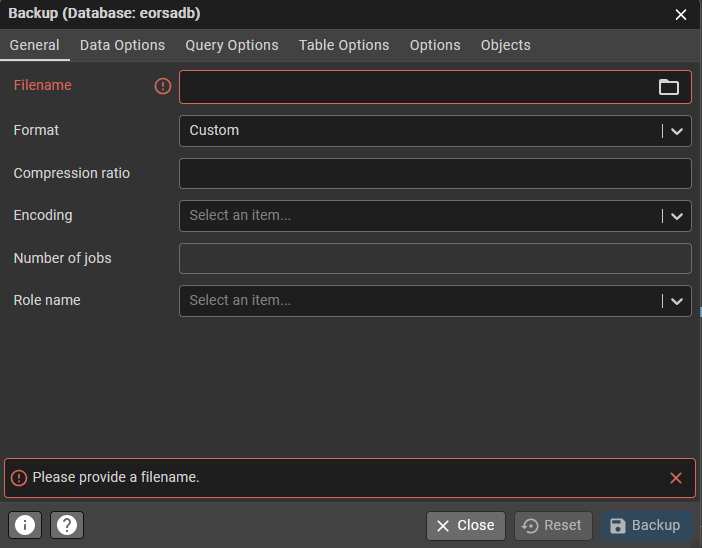

Creating a Backup

1. Right-click the eorsadb database in the Object Explorer.
2. Select Backup….
3. Choose the output file path, format (Custom, Plain, Tar, or Directory), and desired options (schema only, data only, etc.).
4. Click Backup to start the operation.

Restoring a Backup

1. Right-click the target database and select Restore….
2. Select the backup file.
3. Configure options as required.
4. Click Restore.

Restoring a backup will overwrite existing data. Always verify the target database before starting a restore operation.

---

PG Admin Access Levels

PG Admin uses its own role mapping, driven by the Keycloak roles described in Roles and Permissions:

Keycloak Role	PG Admin Level	Capabilities
pgadmin-superuser	Administrator	Full PG Admin access: manage users, add server connections, execute any SQL.
pgadmin-user	User	Standard access with the pre-configured read-only server connection.

An EORSA-DB Administrator is automatically granted pgadmin-superuser. All other users who can reach PG Admin (i.e. EditorUser) are granted pgadmin-user.

---

Troubleshooting

Symptom	Likely cause	Resolution
PG Admin link not visible	Account lacks ImportExportDatabase permission.	Ask your Administrator to assign the EditorUser or Administrator role in Keycloak.
Authentication error on PG Admin login	Keycloak session expired or cookie issue.	Log out of EORSA-DB, log back in, then click the PG Admin link again.
Connection refused on EORSA-DB (Read Only) server	Database container not running or unreachable.	Contact the system administrator to verify the eorsadb-db container is healthy.
Permission denied when editing data	Using the read-only pgadmin_readonly account.	Contact the system administrator for a write-capable connection.
